FSA STATIC SEAL
DESCRIPTION
The FSA Static Seal type (SAE Flange) has recently known a significant development in all static applications where a normal o-ring in NBR would not resist to pressure and to high coupling clearance. The specific profile and the high modulus of elasticity, together with an excellent compression-set, avoid the problems of extrusion and of leaks in the tube flanges.
TECHNICAL DATA
Pressure: <400 bar
Temperature: from -35°C to +100°C with peaks till +110°C
Fluids: oil and mineral grease, non-aggressive gases etc.
MATERIAL
Standard polyurethane at 93 Sh A ± 2. Compound reference: C0
ADVANTAGES
Excellent abrasion resistance. Excellent extrusion resistance.
ASSEMBLY
It is important to avoid any cutting edges and flash in the housing and to ensure a lead-in chamfer to facilitate mounting. The installation in open housing is extremely simple.

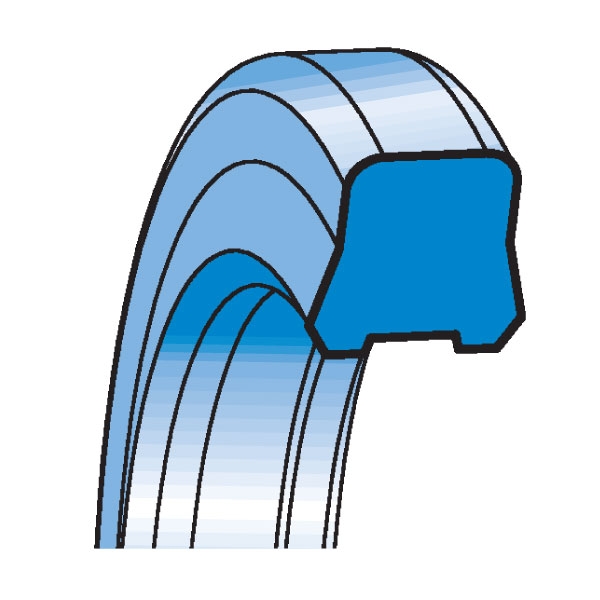

DRAWING FSA STATIC SEAL
ARTICLES FSA STATIC SEAL
| INCH DIM. | d | D | E | L | ART / ITEM | ||
| min – max | |||||||
| 1/2” | 13,0 | 25,40 – 25,83 | 3,94 – 4,45 | 2,79 – 2,92 | FSA | 0500 | C0 |
| 3/4” | 19,0 | 31,75 – 31,88 | 3,94 – 4,45 | 2,79 – 2,92 | FSA | 0750 | C0 |
| 1” | 25,0 | 39,62 – 39,75 | 3,94 – 4,45 | 2,79 – 2,92 | FSA | 1000 | C0 |
| 1 1/4” | 32,0 | 44,45 – 44,58 | 3,94 – 4,45 | 2,79 – 2,92 | FSA | 1250 | C0 |
| 1 1/2” | 38,0 | 53,72 – 53,98 | 3,94 – 4,45 | 2,79 – 2,92 | FSA | 1500 | C0 |
| 2” | 51,0 | 63,25 – 63,50 | 3,94 – 4,45 | 2,79 – 2,92 | FSA | 2000 | C0 |
| 2 1/2” | 63,0 | 76,45 – 76,70 | 3,94 – 4,45 | 2,79 – 2,92 | FSA | 2500 | CO |
